Universal Load Box (ULB):
The bench top analog load box, part number G01117-00 with approximate dimensions of
19 ”x14.5”x17” features:
- Open and Closed Loop Engine Speed simulation
- 48 Ratiometric or Resistive A/D outputs
- 42 Switch outputs
- ESS/EPS and 6 additional frequency outputs
- Includes 12v and 24v internal VBATT Supply
For more features, download the ULB Feature Listing.
Harnesses are custom designed for user applications. GarTech can input the data per users documentation to generate harnesses. The following spreadsheet will automatically create a harness design based on user input:

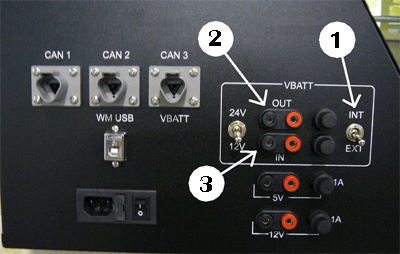

ULB Side Panel Diagram:
Diagram Explanation:
1. Internal VBATT Supply vs. External VBATT Supply Switch
2. VBATT Output Jack (regardless of input supply)
3. Connection Jack for External VBATT Supply
